松夏减震器,安全又耐用

咨询电话:

17317317121(微信同号)


弹簧减震器

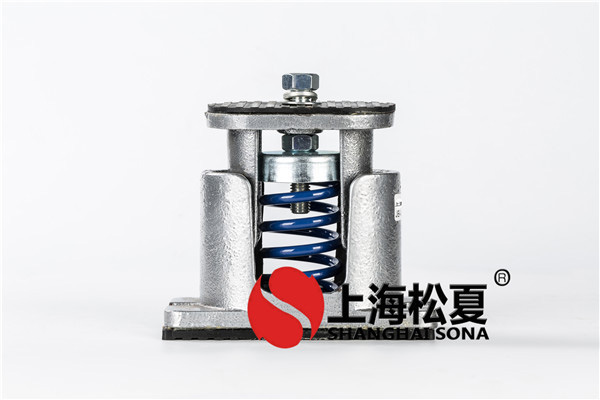

JB-150-S风机专用低频阻尼弹簧减震器

Special low frequency damping spring damper for fan
上海松夏有限公司官方网站为您介绍:JB风机专用低频阻尼弹簧减震器信息,松夏集团是*家从事风机减震器生产厂家,为风机推荐*款专用的弹簧减震器,采用低频阻尼型设计,让风机大大的降低震动,,非常明显,以下是风机减震器介绍。
Shanghai Songxia absorber group limited official website for your introduction: JB-60-S fan special low frequency damping spring damper, Songxia group is a professional engaged in the fan damper manufacturers recommend a special spring damper for fan, the low frequency damping type design, let the wind machine greatly reduced to enhance the effect of vibration, *, is very obvious, the following is fan dampers are introduced.
JB-60-S风机专用低频阻尼弹簧减震器

产品主要.点与用途
JB型低频可调式阻尼弹簧减振器采用高强度球铁材质,具有载荷范围宽,固有频率低,安装方便等优点。减振器上部配有上螺栓与设备固定,下部可与地基固定:设有高度调节螺栓,可以调节设备水平,并采用侧向阻尼,提高了纵、横向水平的刚度(阻尼比>0.065)。
应用*域:空调箱、排送风机、风车。小型冰水机组、水泵。发电机组、*般产业机械组。
Main features and uses of products
The JB type low frequency adjustable damping spring damper adopts the material of high strength ductile iron, which has the advantages of wide load range, low natural frequency and convenient installation. The upper part of the shock absorber is equipped with upper bolts and equipment fixed, and the lower part can be fixed with the foundation. It has a height adjusting bolt, which can adjust the equipment level and use lateral damping to improve the horizontal and horizontal stiffness (damping ratio >0.065).
Application areas: air conditioning box, exhaust fan, windmill. Small ice water unit, water pump. The generator set, the general industrial machinery group.
JB风机专用低频阻尼弹簧减震器 Fan low frequency damping
产品主要.点与用途
JB型弹簧减震器本体材质分为.殊强化尼龙及球状铸铁。.殊强化尼龙材质为尼龙加强化纤维,强度.*;尼龙材质可耐酸硷,防紫外线,并经严格老化测试,品质优良,安全性高。球状铸铁本体经热浸镀锌处理,耐候性*。外型轻巧坚固,按装容易;适用于各类机械内避震装置。弹簧均经热处理、ED防锈、烤漆等程序处理。荷重挠度25mm、40mm能有效消除机械结构振动。*
The material of JB type spring shock absorber is divided into special reinforced nylon and spherical cast iron. Special material for nylon reinforced nylon with fiber reinforced nylon material, excellent strength; resistant to acid and alkali, anti ultraviolet, and the strict aging test, good quality, high safety. The spheroidal cast iron is treated by hot dip galvanizing, and the weatherability is good. It is light and sturdy and easy to install. It is suitable for all kinds of mechanical shock devices. The spring is treated by heat treatment, ED antirust, baking paint and so on. The load deflection of 25mm and 40mm can effectively eliminate the vibration of mechanical structure. *
JB型弹簧减震器又称风机减震器具有结构简单,安装方便等.点,减振器上下端各有螺丝及螺丝孔,弹簧上端有高度调节螺母,可根据安装需要自由调整高度,减震器两端有侧向橡胶阻尼,加大了垂向的阻尼系数,提高了纵向和横向的刚度,确保设备能更安全的运行。
JB type spring shock absorber and the fan damper has the advantages of simple structure, easy installation, shock absorber on the lower end of the screw and the screw hole, the upper end of the spring with a height adjusting nut can be installed according to the need to adjust the height of freedom, both ends of the lateral rubber shock absorber damping, increase the damping coefficient of vertical, improve the longitudinal and transverse stiffness, ensure the safe operation of equipment can be more.
以下是JB型弹簧减震器外形尺寸和其他型号表:
The following are the shape size and other types of JB spring damper.

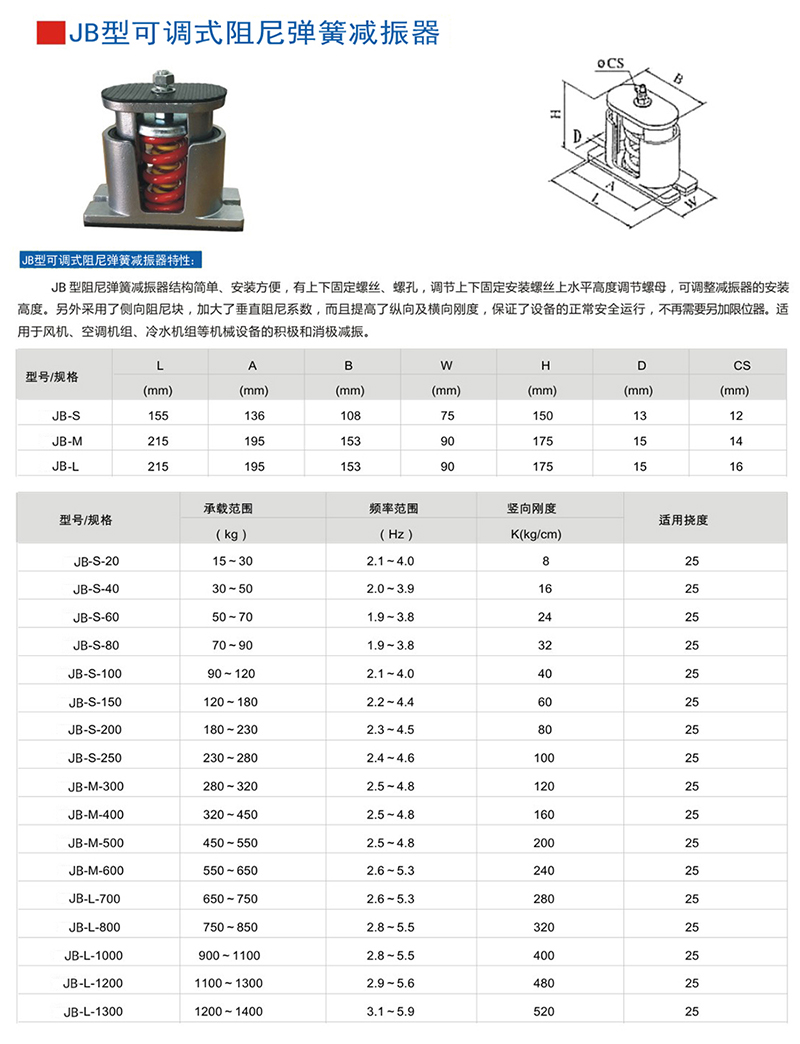

JB型弹簧减震器外形尺寸和其他型号表
